스크류 Screw
선재를 이용 Heading & Rolling 공정을 거쳐 Screw원형을 제조.후 공정으로 열처리 및 도금처리 제품완성
The original shape of screw is manufactured with wire rod through the heading & rolling process, and the finishing of product is completed with heat treatment and plating treatment as the post process.
The original shape of screw is manufactured with wire rod through the heading & rolling process, and the finishing of product is completed with heat treatment and plating treatment as the post process.

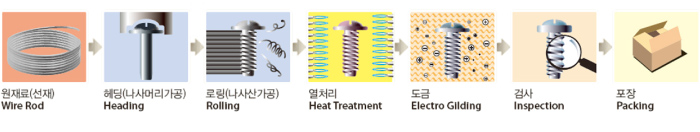

- PROCESS
- 원재료(Wire rod) 입고 : 나사 생산을 위한 선재 입고
Warehousing of raw material(Wire rod): Warehousing the wire rod for manufacturing the screw - Heading 공정 : 나사 헤드 가공 & Size별 절단 공정

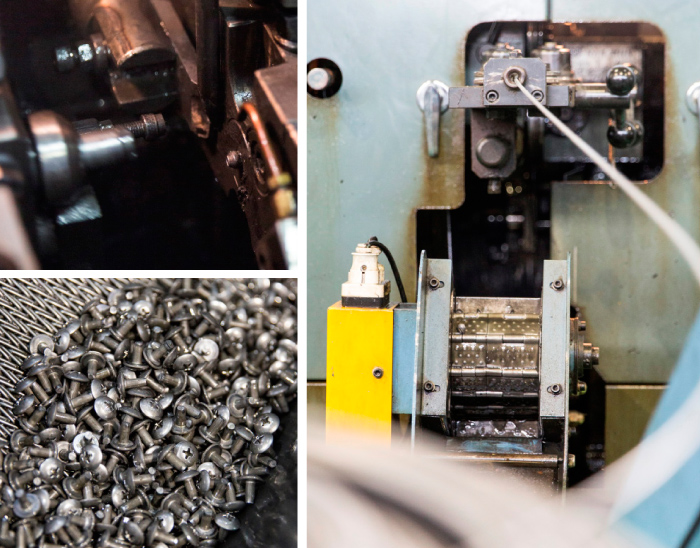

Heading process: The process of screw head processing and cutting for each size - Rolling 공정 : 나사산(Screw thread) 가공 공정

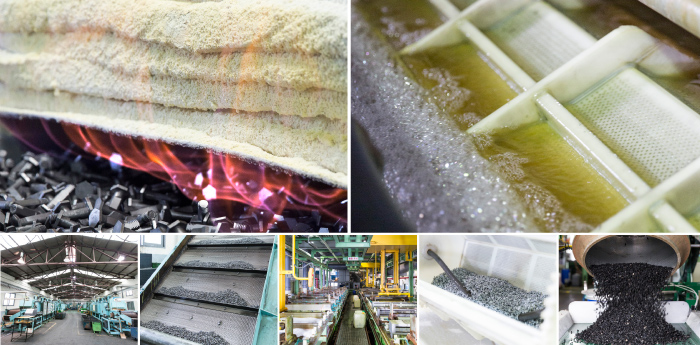

Rolling process: The process of machining the screw thread - 열처리(Heat treatment) 공정 : 나사 강도를 위한 열처리 공정
Heat treatment process: The process of heat treatment for screw strength - 도금(Electro gilding) 공정 : 부식방지 및 미려한 색상구현을 위한 도금 공정
Plating(Electro gilding) process: The process of plating for realizing anti-corrosion and elegant color - 검사 및 포장 공정 : 비전검사기(Machine vision systems) 검사 및 포장 공정
Inspection and packing process: The process of machine vision system inspection and packing
- 원재료(Wire rod) 입고 : 나사 생산을 위한 선재 입고
| Heading | 3~8mm |
| Rolling | 3~6mm |
| 4~8mm Washer |
| Plating line (1 group) |
| Heat treatment line (2 group) |
